PRICE LIST 2010 - ROTARY VALVE

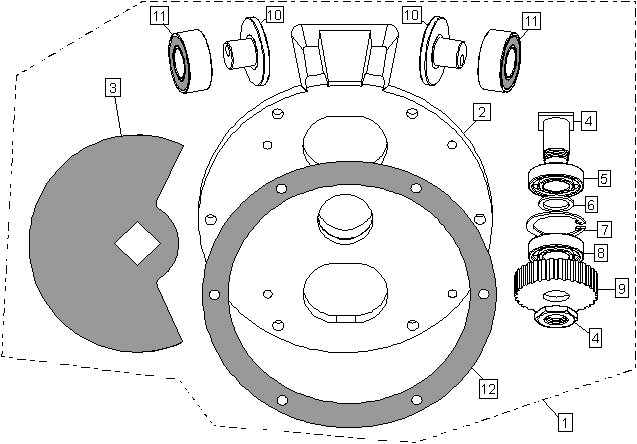

Rotary valve O-500 and O-700





Tooth belt

Ref.

No.

Part

No.

Description

Price

-EUR-


1

500

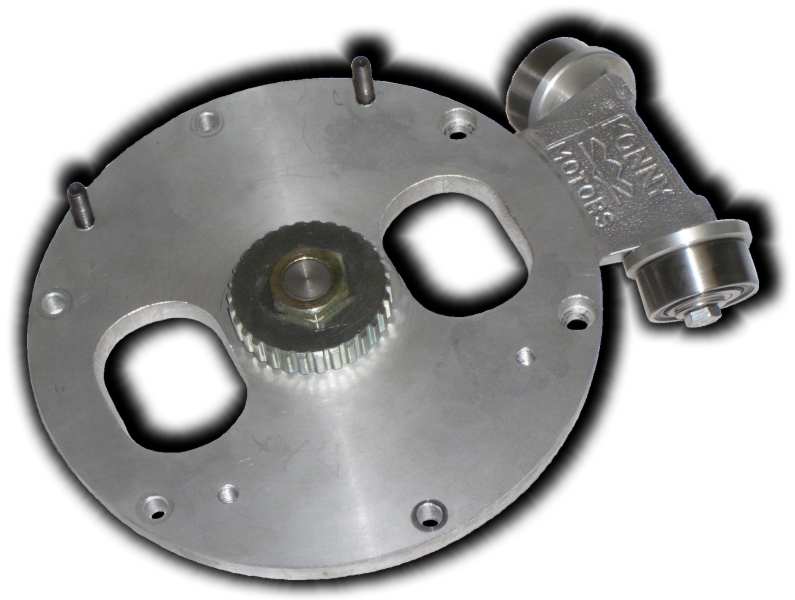

 Rotary valve complete

190,-

 Complete rotary valve

2

510

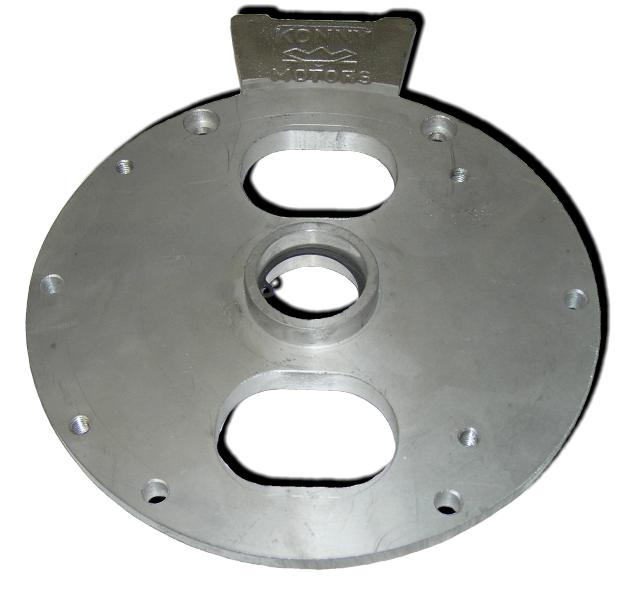

 Rotary valve case

90,-

 Rotary valve case

3

520

 Rotary valve plate 0.5 mm

30,-

 Plate 0.5mm

4

530

 Shaft with nut

15,-

 Shaft with nut

5

531

 Ball bearing 16002

6,-

 Ball bearing 16002

6

532

 Washer 1.2 mm

2,-

 Washer 1.2 mm

7

533

 Circlip Ø32 mm

1,-

 Circlip 32mm

8

534

 Ball bearing 6002

5,-

 Ball bearing 6202

9

535

 Tooth gear

35,-

 Tooth gear

10

536

 Shaft turn around (couple)

15,-

 Shaft turn around

11

540

 Ball bearing 62202-2RS

15,-

 Ball bearing 63003-2RS

12

545

 Gasket for rotary valve case

5,-

 Gasket

13

550

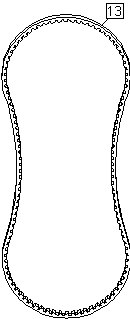

 Tooth belt

5,-

 Tooth belt

Example order for rotary valve plate 0.5mm:  part. No. 520 - ( 1 piece ) = price  30,-EUR
