PRICE LIST- Ignition

Boat

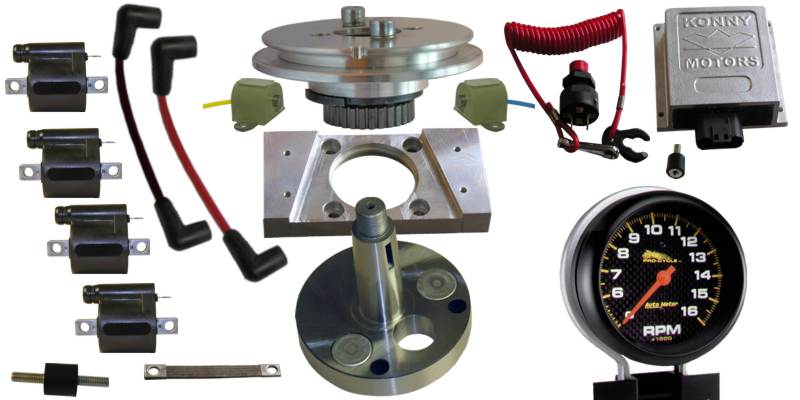

Complete ignition including:

1 flywheel

1 ignition box

1 plate

2 pickups

4 coils with high voltage cables

1 quickstop

2 wire harness

2 knitted ground cable

1 woodruff key



INSTRUCTIONS

Instructions for ignition




SCHEMA

Wiring schema

Part No.

Description


700

Complete ignition for KONNY & König engines 500cc



701 Complete ignition for KONNY & König engines 700cc
702 Complete ignition for König engines 350cc

710

Ignition box for 500cc engine

Ignition box

711

Ignition box for 700cc engine

Ignition box

712

Ignition box for 350cc 4cylinder König engine

Ignition box

720

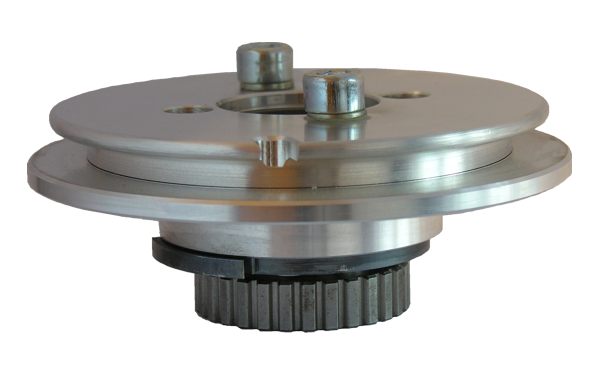

Ignition flywheel

 Ignition flywheel

721

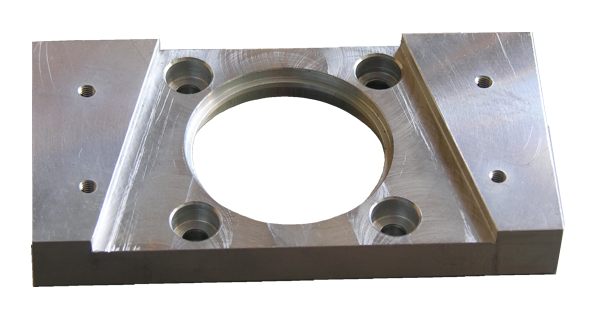

Ignition plate

Ignition plate

722

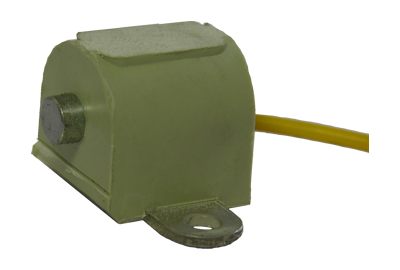

Ignition pickup (sensor) yellow wire

Ignition pickup (sensor)

723 Ignition pickup (sensor) blue wire

Ignition pickup (sensor)

730

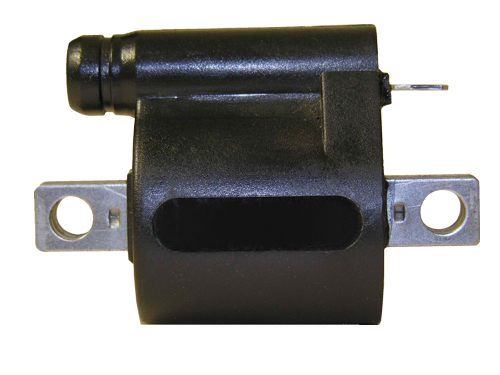

Ignition coil only

Ignition coil

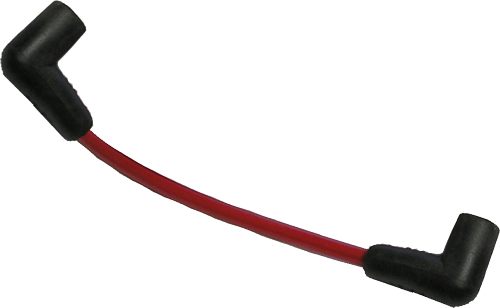

731 Spark plug wire with the boots (red) 20cm long

Spark plug wire cabel with boots (Red) 20cm long

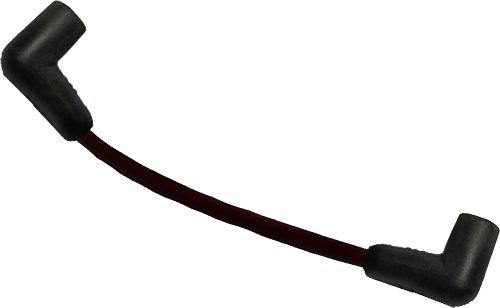

732 Spark plug wire with the boots (black) 20cm long

Spark plug wire cabel with boots (Black) 20cm long

733 Rubber spark plug cap long type (black)

734 Rubber spark plug cap short type (black)



735 Rubber spark plug cap long type (red)

736 Rubber spark plug cap short type (red)



739 Spark plug connector

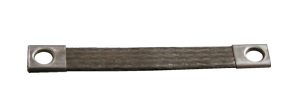

780 Knitted ground cabel (silver plated)

Ground cabel

781 Rubber mount for coil  M5

Rubber mount for coil M5

782 Rubber mount for ignition box  M4

Rubber mount for ignition box M4

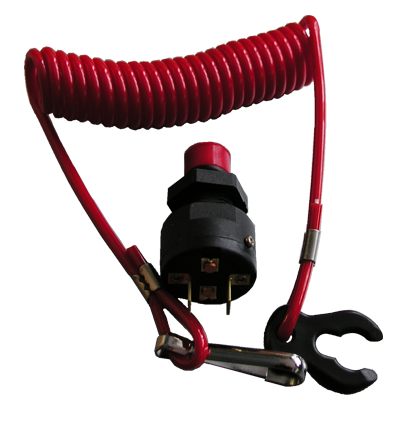

783 Quickstop with the fork on rope

Quickstop with the fork on rope

784 Wire cables to boat, length cables 4 meters

785 Cable wires for the 4 cylinder motors

791 Spark plug BOSCH W07CS

Spark plug BRISK L10S   long thread M14x1.25

212

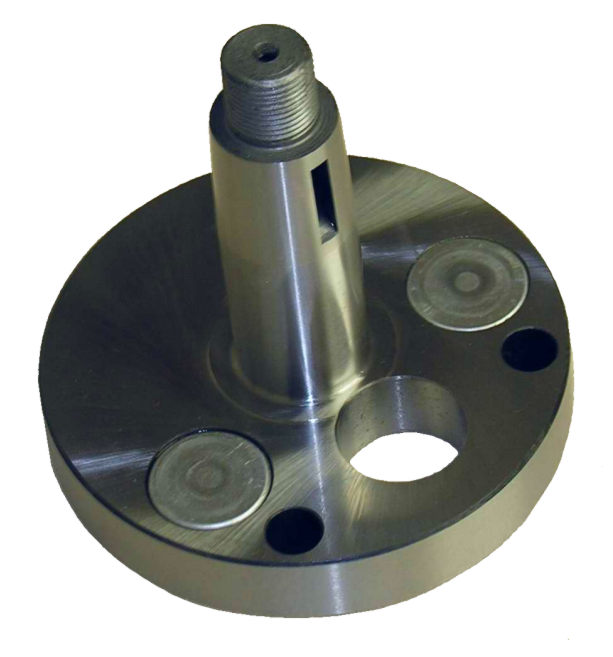

Upper crank disc Upper disc Drawing

217

Woodruff keyway 4mm Woodruff keyway
790 Tachometer for ignition from 0 to 16000 RPMs 12V

Tachometer for ignition, revs range 0 - 16000 RPM, 12V, incandescent bulb "around the dial" lighting

All prices will be confirmed for request.
