PRICE LIST - GEARBOX 12:15 LARGE


Drawing of gearbox 12:15 large Gearbox 12:15 large complete



Ref.

No.

Part No.

Description


1

940 Gearbox 12:15 large complete

  Gearbox in plastic case

2

941 Gearbox housing only (polished)

3

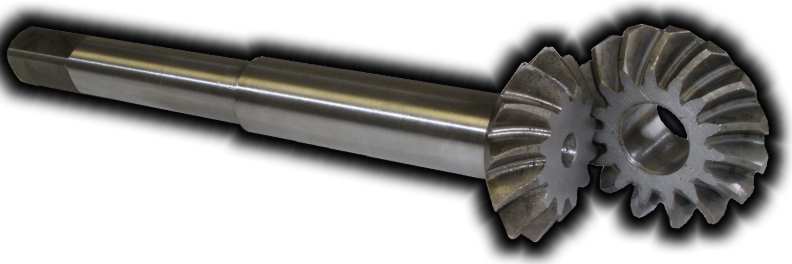

942 Gear wheels 12:15(couple without propeller shaft)

Gears 12:15 Large

4

901 Propeller shaft

5

902 Ball bearing 6202

6 903 Needle bearing NK15/16
7 904 Needle bearing NK18/20
8 905 Axial bearing Axial bearing
9 906 Washer 3mm (hardened) Washer
10 907 Distance pipe length 30mm (hardened)
11 918 Distance pipe length 50mm (hardened)
12 909 Oil screw M8x1
13 910 Screws M5x16  8pcs. (stainless steel) Screw M5x16
14 911 Oil seal 15x35x8  (ring and seal)
15 912 Oil seal 15x23x5 (seal and AL cap)
16 913 Shear pins   20 pieces Shear pins 20 pcs. Shear pins 20 pcs. in plastic box Shear pins 20 pcs. in plastic box
17 914 Nut with plastic insert M14x1.5 Nut M14x1.5
999 Pin punch 5 mm Pin punch
  990 Plastic case for gearbox, propelers, etc.... Plastic case Plastic case Plastic case with propellers

All prices will be confirmed for request.
