PRICE LIST - KÖNIG PISTONS

KÖNIG 500cc PISTONS     3-port long

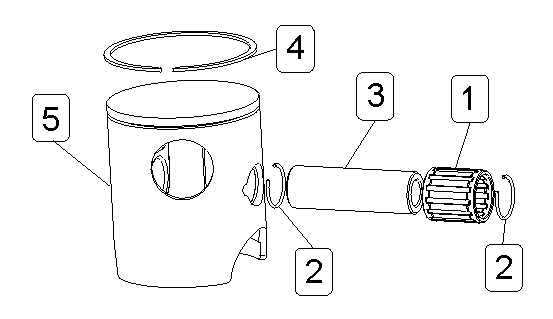

500cc König 3-port pistons long type





DRAWING

Drawing

Ref.

No.

Part

No.

Description


1

300

  Needle bearing for gudgeon pin Needle bearing

2

301

  Clip 15 mm (2 pieces) Clip to piston

3

332

  Piston pin, length 45 mm Piston pin length 45 mm

4

3220

  Piston ring 54.00 mm (standard) 500 cc Piston ring

4

3221

  Piston ring 54.10 mm (oversize) 500 cc Piston ring

4

3222

  Piston ring 54.20 mm (oversize) 500 cc Piston ring

4

3223

  Piston ring 54.25 mm (oversize) 500 cc Piston ring

4

3225

  Piston ring 54.50 mm (oversize) 500 cc Piston ring

5

31270

  Piston 53.94 mm (standard) Konig 500cc piston

5

31271

  Piston 54.04 mm (oversize) Konig 500cc piston

5

31272

  Piston 54.14mm (oversize) Konig 500cc piston

5

31273

  Piston 54.24mm (oversize) Konig 500cc piston

All prices will be confirmed for request.
