KONNY MOTORS

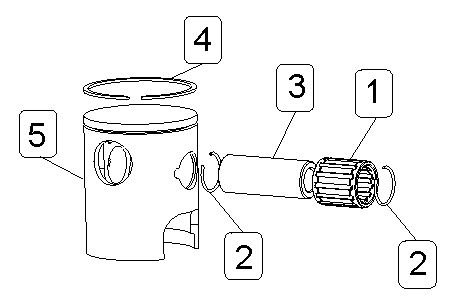

Ref. No.	Part No.	Description	Photo
1	300	Needle bearing for gudgeon pin
2	301	Clip 15 mm (2 pieces)

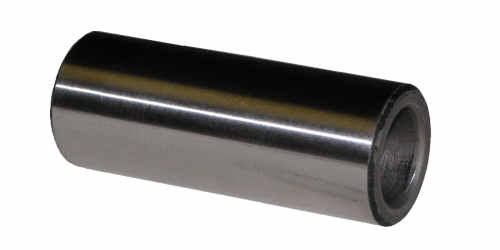

3	334	Piston pin, length 36.5 mm
4	3210	Piston ring 45.00 mm (standard)
4	3211	Piston ring 45.25 mm (oversize)

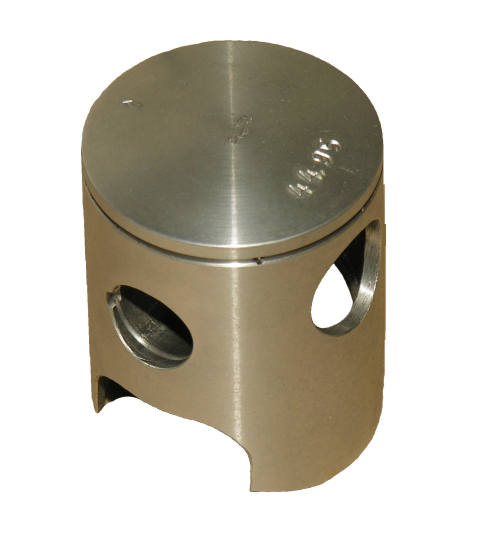

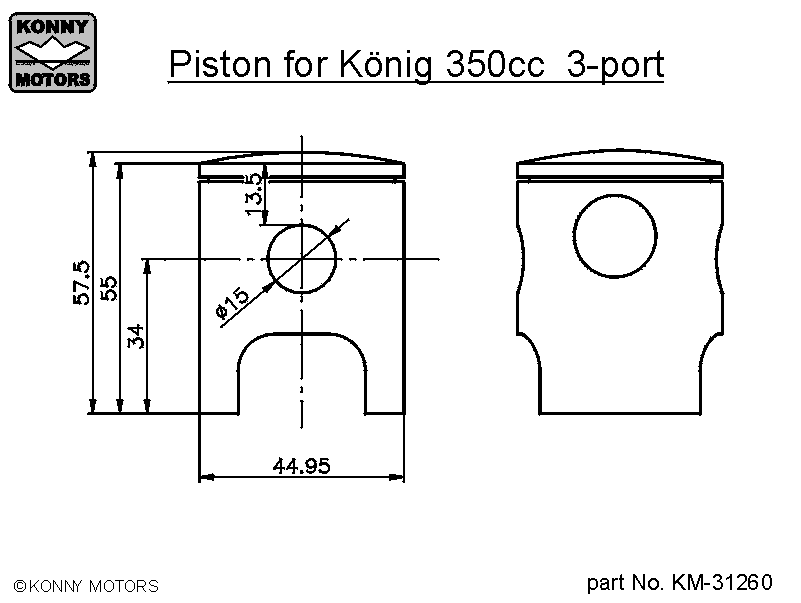

5	31260	Piston 44.95 mm (standard)
5	31261	Piston 45.05 mm (oversize)
5	31262	Piston 45.15 mm (oversize)
5	31263	Piston 45.25 mm (oversize)
