STYLE - GEARBOX 15:14 LARGE






Ref.

No.

Part No.

Description


1

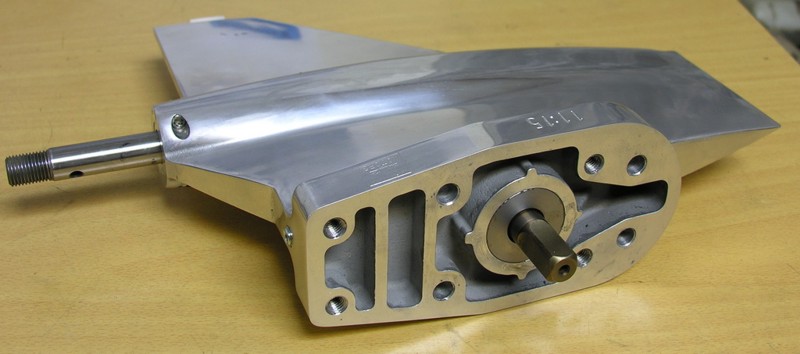

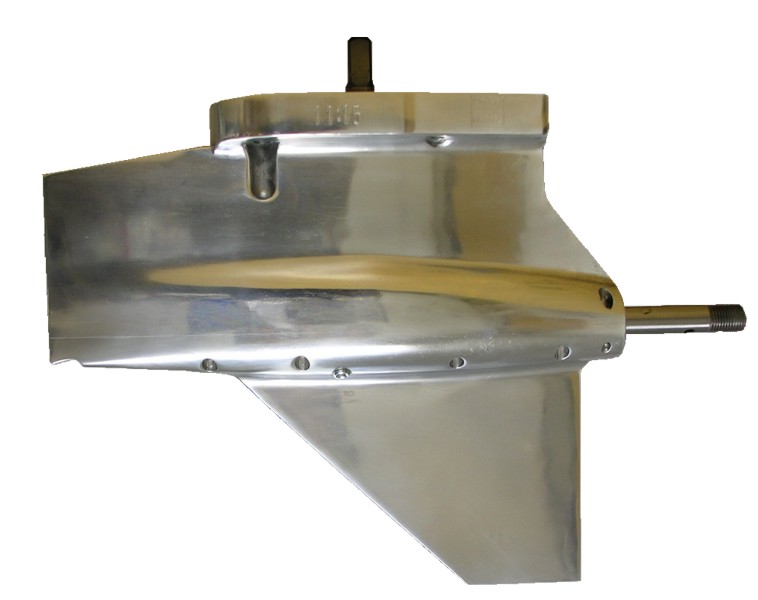

1150 Gearbox 15:14 large complete



2

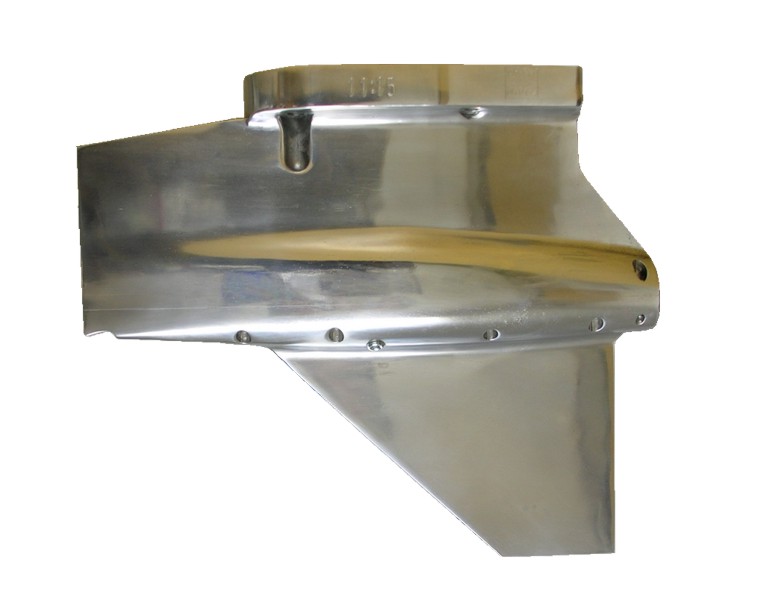

1105 Gearbox housing only (polished)

3

1151 Gear wheels 15:14 (couple without propeller shaft)

Gears 15:14

4

901 Propeller shaft

5

902 Ball bearing 6202

6 903 Needle bearing NK15/16
7 904 Needle bearing NK18/20
8 905 Axial bearing Axial bearing
9 906 Washer 3mm (hardened) Washer
10 907 Distance pipe length 30mm (hardened)
11 908 Distance pipe length 50mm (hardened)
12 909 Oil screw M8x1
13 910 Screws M5x16 TORX 25 (stainless steel) Screw M5x16
14 911 Oil seal 15x35x8  (ring and seal)
15 912 Oil seal 15x23x5 (seal and AL cap)
16 913 Shear pins   20 pieces Shear pins 20 pcs. Shear pins 20 pcs. in plastic box Shear pins 20 pcs. in plastic box
17 914 Nut with plastic insert M14x1.5 Nut M14x1.5

All prices will be confirmed for request.
