MOTORBIKE CATALOGUE - Crankshaft

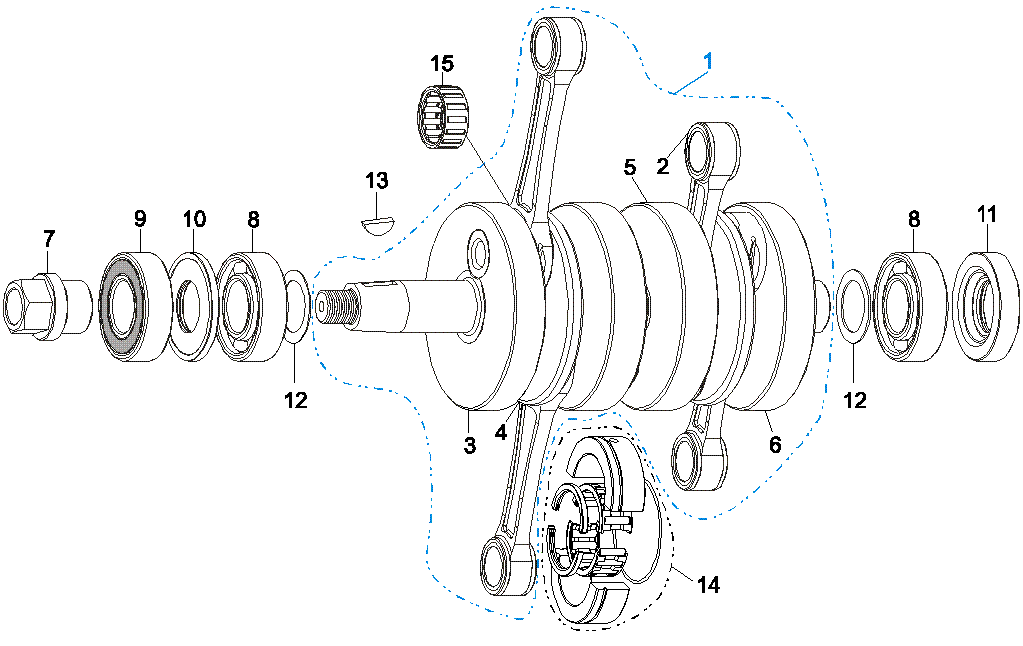

Complete crankshaft

Ref.

No.

Part No.

Description


1

201

Complete crankshaft, same as original König with square hole 12x12mm on end

Complete crankshaft

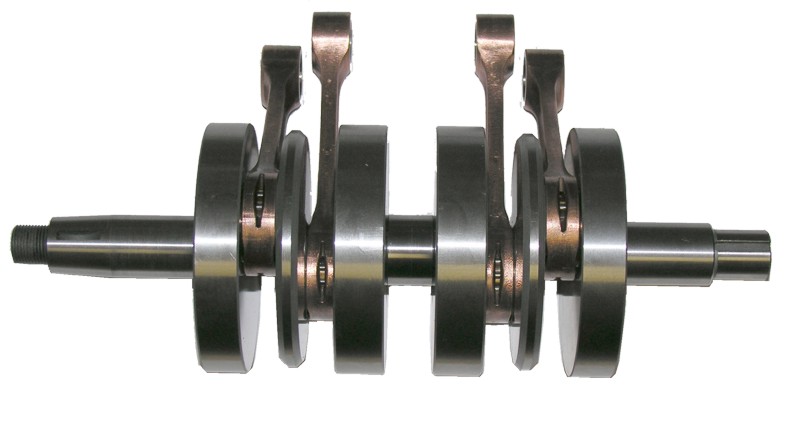

1

202

Complete crankshaft, with 20mm shaft and groove for keyway on end

2

211

Connecting rod (only) Connecting rod Drawing

3

2121

Upper crank disc

Upper disc Drawing

4

213

Crank disc (hub)

Crank disc (HUB) Drawing

5

2141

Middle crank disc

Center disc

6

2151

Bottom crank disc hole 12x12mm Bottom disc

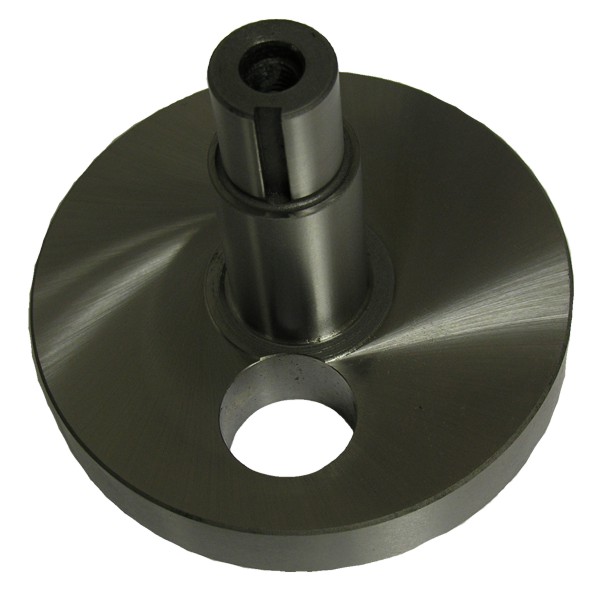

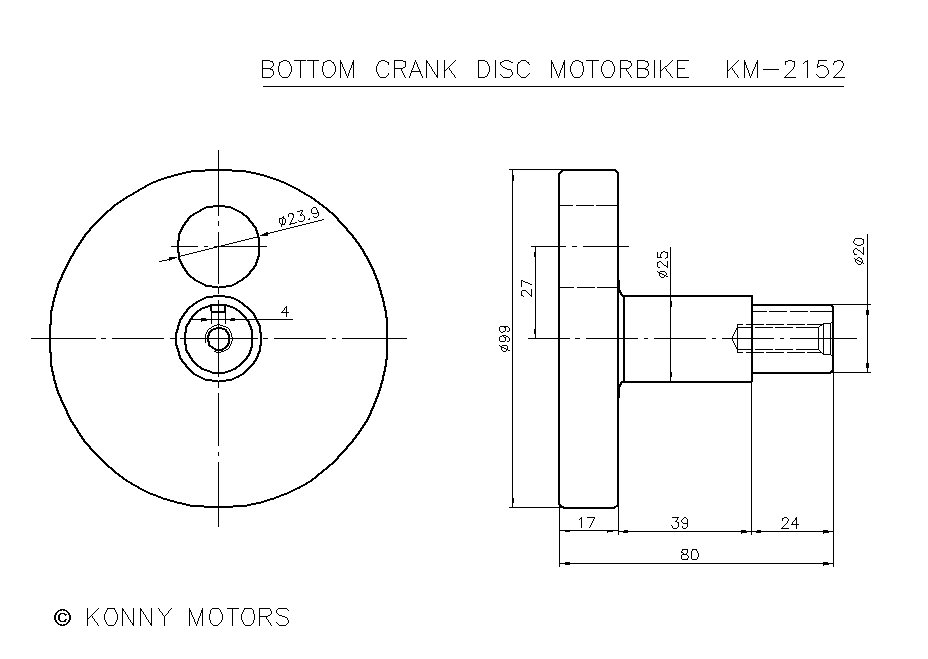

6

2152

Bottom crank disc, 20mm shaft, 4mm groove

Bottom disc 20mm shaft

7

216

Nut for crankshaft M16x1.25

Nut fo rcrankshaft

8

220

Main bearing 6205 / C3 Ball bearing 6205/C3

9

221

Bearing 6205-2RS1 / C3 Ball bearing 6205-2RS1/C3

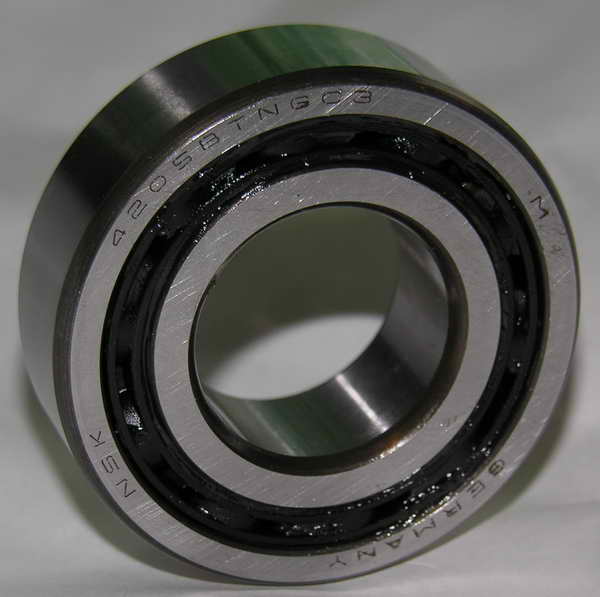

9

225

Double row bearing 4205 / C3  polyamid cage Double row bearing 4205 C3 polyamid cage

10

222

Al labyrinth 52x4 mm Labyrint from Aluminium Drawing

11

223

Oil seal 25x52x8 Oil seal 25x52x8

12

2240

Washer 26x38x0.1 mm Washer 26x38x0.1

12

2241

Washer 26x37x0.3 mm Washer 26x37x0.3

12

2242

Washer 26x37x0.5 mm Washer 26x37x0.5

12

2243

Washer 26x37x 1 mm Washer 26x37x1

13

217

Woodruff keyway 4mm Woodruff keyway

14

240

Complete center bearing Complete center bearing

15

250

Connecting rod bearing 24x30x13 Big end bearing 24x30x13



All prices will be confirmed for request.

You can use crankshaft to all old König engines.
