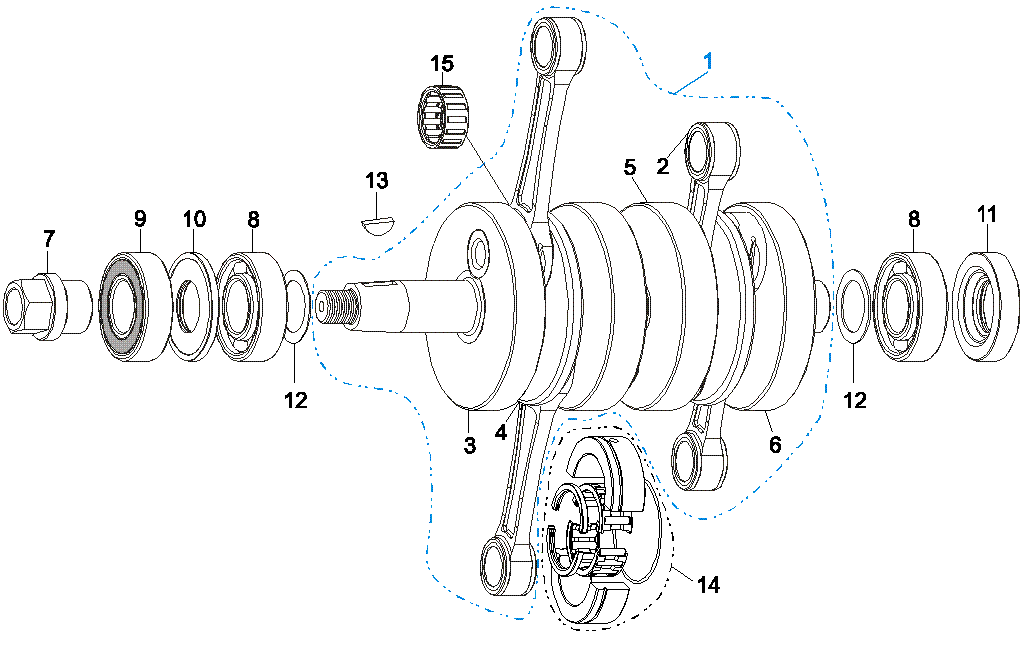

Ref.
No.
|
Part No.
|
Description
|
Photo |

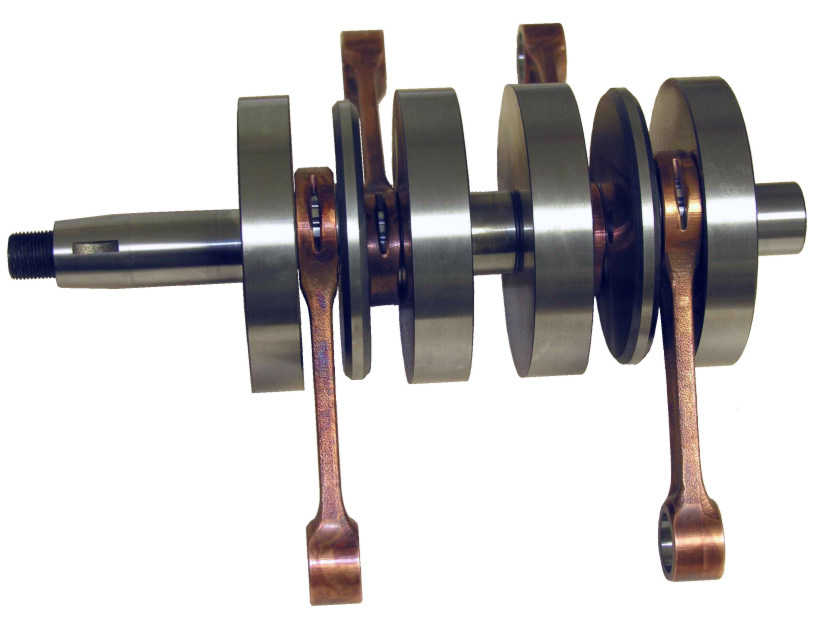

1
|
200
|
Complete
crankshaft (without bearings) |
|

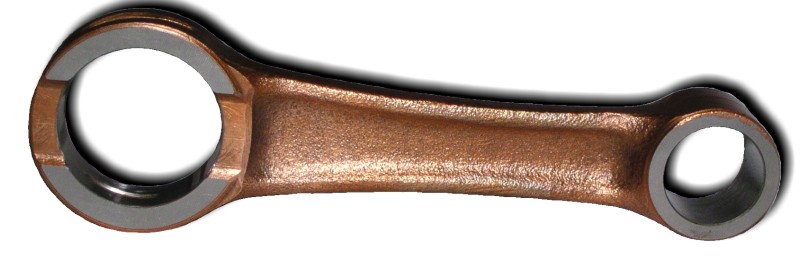

2
|
211
|
Connecting
rod (only) |
|

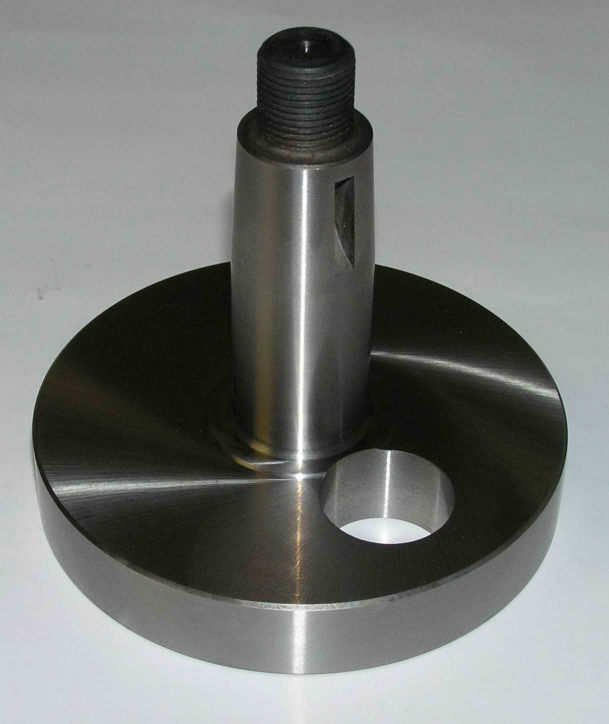

3
|
2121
|
Upper
crank disc |
|
4
|
213
|
Crank
disc (hub) |
|

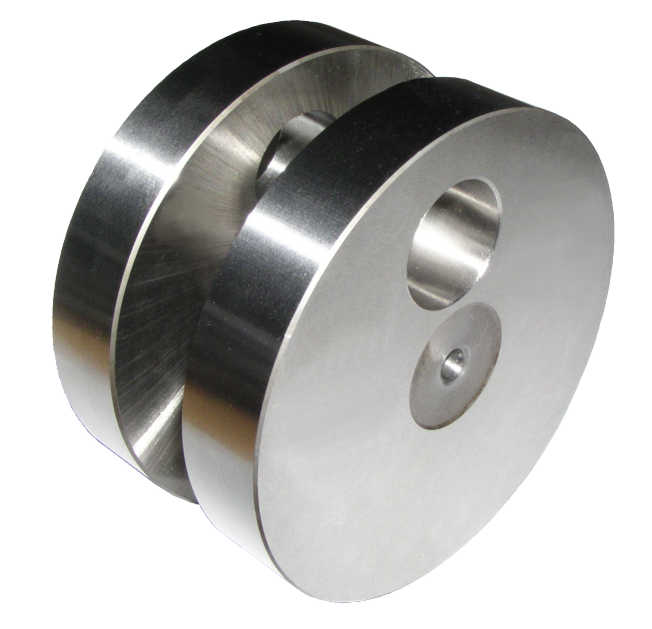

5
|
2141
|
Middle
crank disc |
|

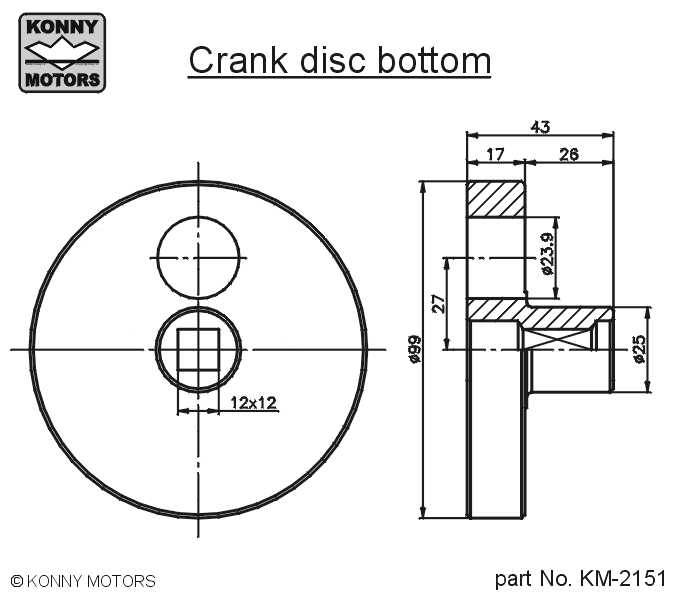

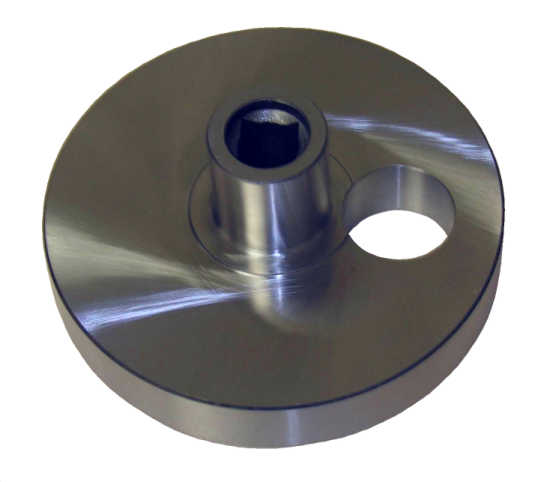

6
|
2151
|
Bottom
crank disc |
|

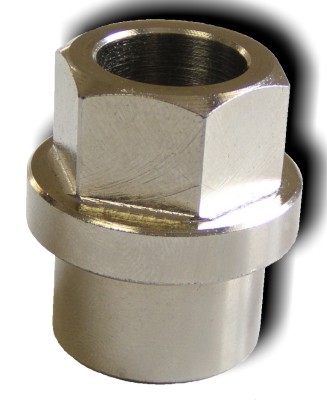

7
|
216
|
Nut
for crankshaft M16x1.25 |
|

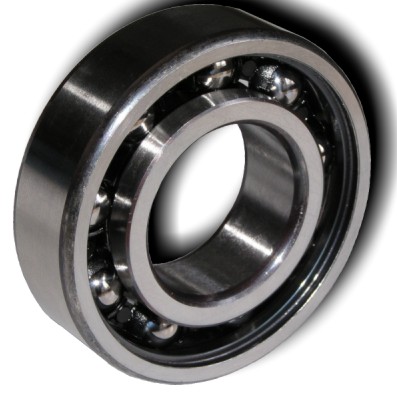

8
|
220
|
Main
bearing 6205 / C3 |
|

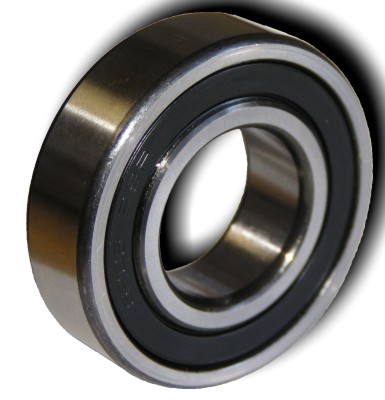

9
|
221
|
Bearing
6205-2RS1 / C3 |
|

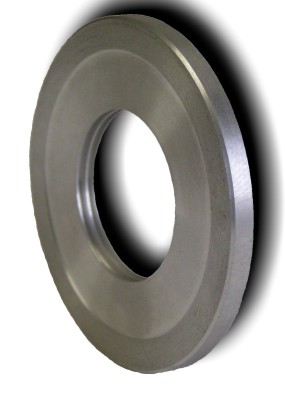

10
|
222
|
Al
labyrinth 52x4 mm |
|

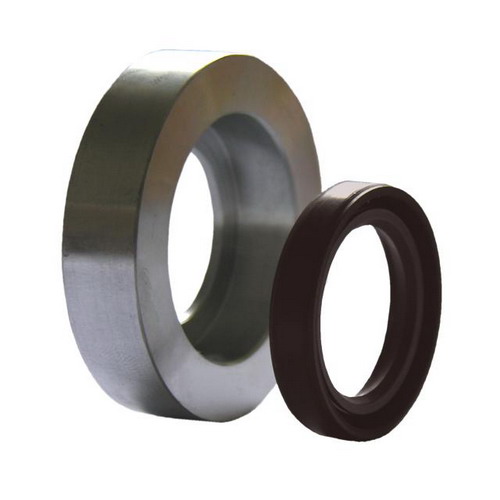

11
|
223
|
Oil
seal 25x52x8 |
|
12
|
2240
|
Washer
26x38x0.1 mm |
|
12
|
2241
|
Washer
26x37x0.3 mm |
|

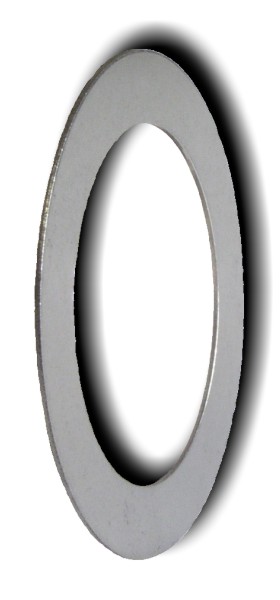

12
|
2242
|
Washer
26x37x0.5 mm |
|
12
|
2243
|
Washer
26x37x 1 mm |
|
13
|
217
|
Woodruff keyway 4mm |
|

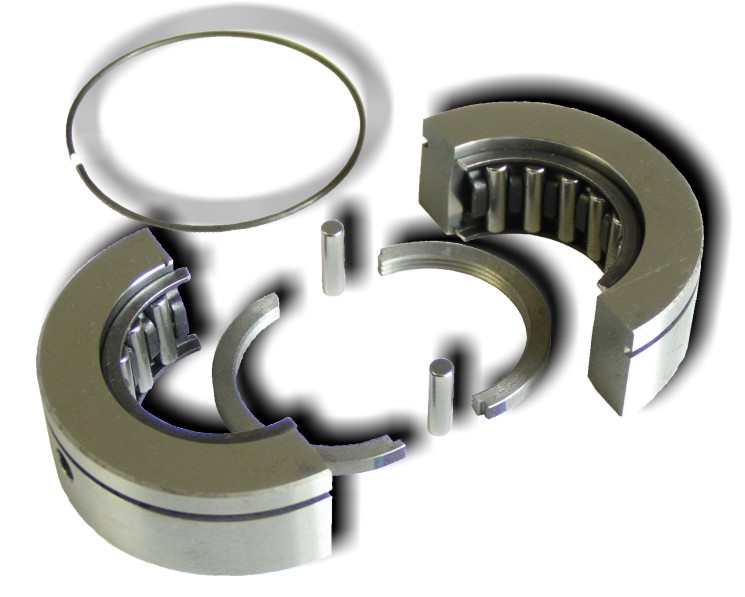

14
|
240 |
Complete
center bearing |
|
|

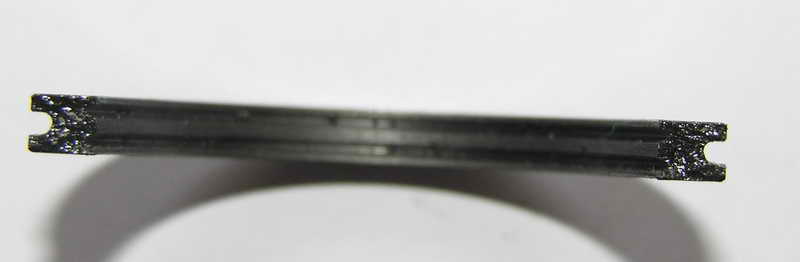

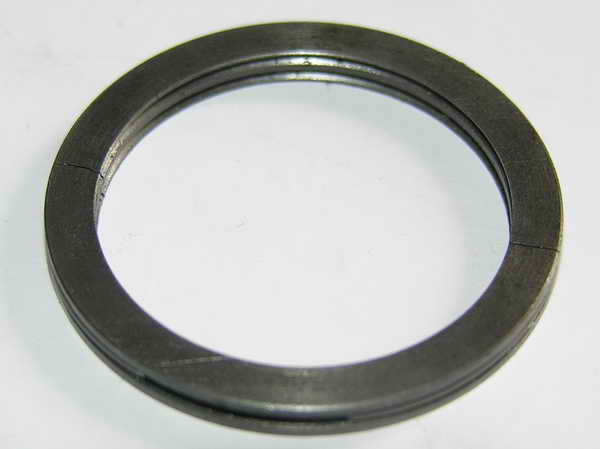

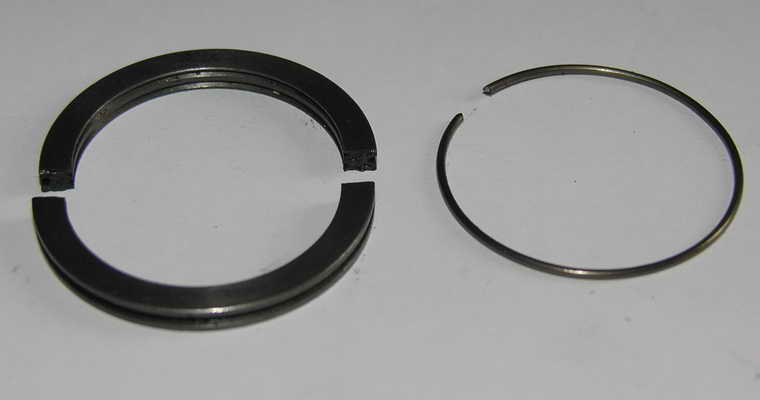

241 |
Labyrinth for
center bearing (halving) |
|
15 |
250 |
Connecting
rod bearing 24x30x13 |
|
