PRICE LIST - KONNY 700cc PISTONS
|
PRICE LIST - KONNY 700cc PISTONS |
|
KONNY 700cc PISTONS
 |
Drawing |
 |
|
|

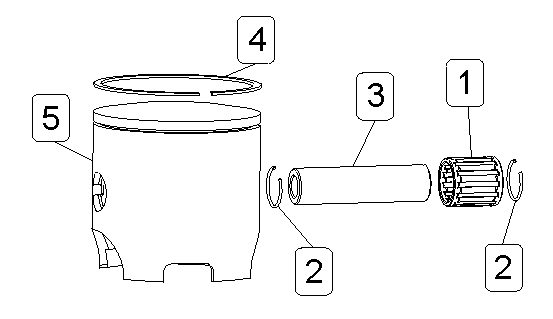

Installation pistons |
|
|
|
Ref. No. |
Part No. |
Description |
Photo |
1 |
300 |
Needle bearing for gudgeon pin |
 |
2 |
301 |
Clip 15 mm (2 pieces) |
 |
3 |
333 |
Piston pin, length 53.5 mm |
 |
4 |
3230 |
Piston ring 64.00 mm (standard) |
 |
4 |
3231 |
Piston ring 64.25 mm (oversize) |
|
5 |
31300 |

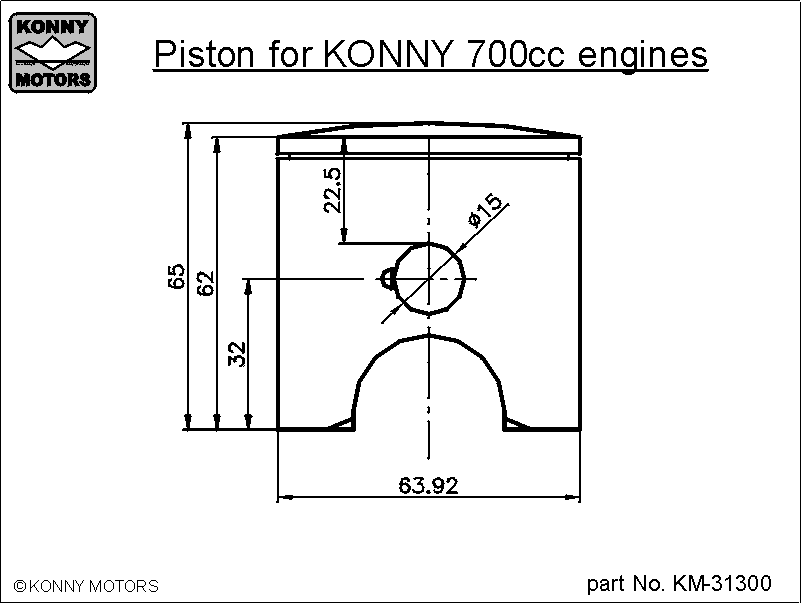

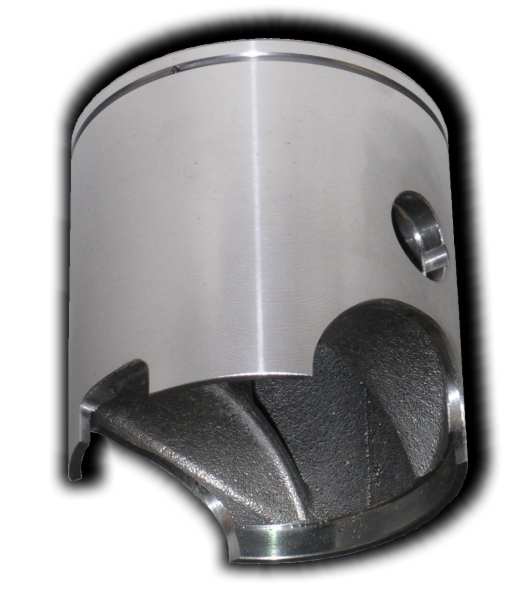

Piston 63.92 mm No.2 (standard) |
 |
5 |
31301 |
Piston 63.92 mm No.1 (standard) |
|
5 |
31310 |
Piston 64.02 mm No.2 (oversize) |
|
5 |
31311 |
Piston 64.02 mm No.1 (oversize) |
|
| 5 | 31320 | Piston 64.12 mm No.2 (oversize) |
|
| 5 | 31321 | Piston 64.12 mm No.1 (oversize) |
|
EAll prices will be confirmed for request.
